SRU-100

Slip Ring

Military Grade
High Vibration Strength
Reliable Data & Power Transfer

An electromechanical equipment that
enables continuous power and data transmission
between static and rotary parts of a
rotating 360°system.

It is an electromechanical part that enables continuous power and data transmission between static and rotary parts of a rotating 360° system.

Slip rings are widely used not only in military systems but also in commercial applications as medical, energy and production systems.

Application Areas

  • Electro-Optical Surveillance, Tracking and Targeting Systems
  • Radar Systems
  • Land Weapons Systems
  • Commander And Sniper Periscopes
  • Wind Turbines and Medical Systems
  • Security Cameras
  • Satellites

Technical Specifications

Dimensions: Ø240mm x 300 mm
Rotating Speed: 30 rpm
Lifetime: 10 Million Revolution
# of Channels: 142 (54 Power, 88 Data)
Power Channels: 6x25A, 3x12A, 17X10A, 28x3A
Data Channels: Ethernet (100Mbps), RS-422, CAN Bus, Discrete

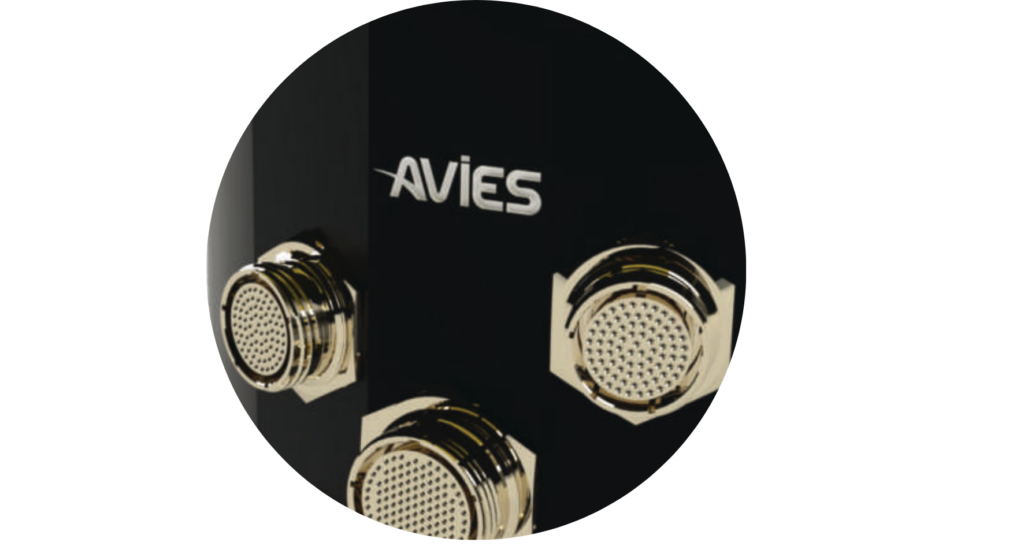

Interface: 12 x D38999 Connectors
Connectors: 6x rotor, 6x stator
Operating Temp: -40°C / +65°C
Qualification: MIL-STD-810G
Sealing: IP65
